Box Model in CSS

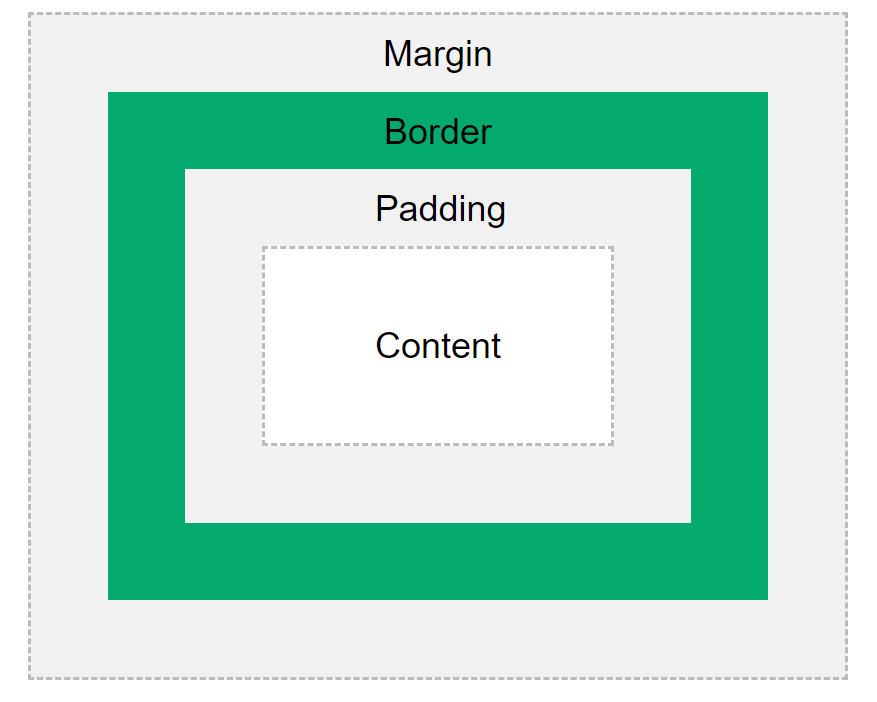

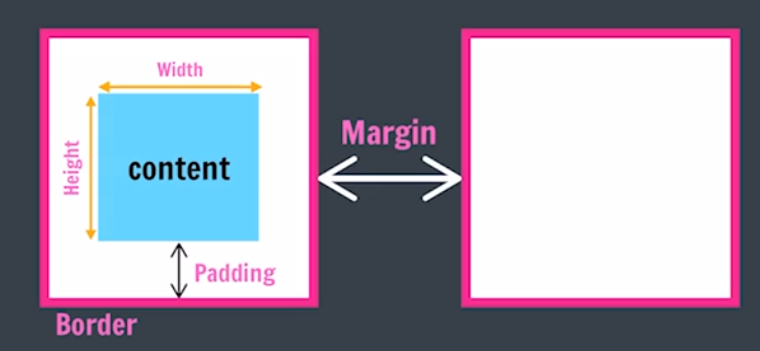

In HTML, All HTML elements can be considered as boxes. The CSS box model is essentially a box that wraps around every HTML element. It consists of: content, padding, borders and margins.

Box Model Elements :-

• Content :- The content of the box, where text and images appear. It has two componets :-
  1. Height
  2. Width
• Padding :- Clears an area around the content. The padding is transparent
• Border :- A border that goes around the padding and content
• Margin :- Clears an area outside the border. The margin is transparent

CSS BOX MODEL PROPERTIES

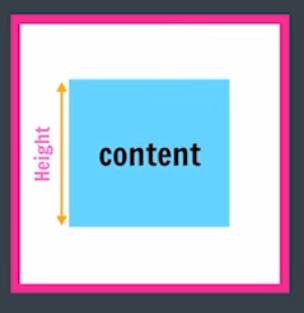

• Height :- By default, it sets the content area height of the element.


  div {
    height: 100px;
  }

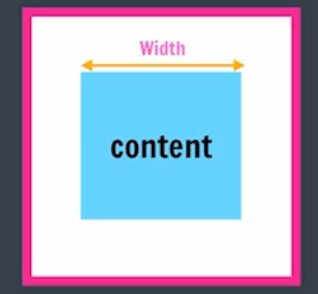

• Width :- By default, it sets the content area width of the element.


  div {
    width: 300px;
  }

• Border :- Used to set an element's border

  1. border-width
     div {
       border-width: 5px;
     }

     border-width values :-

     • border-width: thin;
     • border-width: medium;
     • border-width: thick;
     • border-width: 5px;


  2. border-style
     div {
       border-style: solid;
     }

     border-style values :-

     • border-style: none;
     • border-style: hidden;
     • border-style: dotted;
     • border-style: dashed;
     • border-style: solid;
     • border-style: double;
     • border-style: groove;
     • border-style: ridge;
     • border-style: inset;
     • border-style: outset;

     no (None) border

     Hidden Border

     Dotted Border

     Dashed Border

     Solid border

     Double Border

     Groove border

     ridge border

     inset border

     Outset Border

  3. border-color
     div {
       border-color: orange;
     }
  4. Border-radius

     Used to round the corners of an element's outer border edge.

     div {
       border-radius: 15px;

       <!-- OR -->
       border-radius: 50%;
     }
     • border-top-left-radius
     • border-top-right-radius
     • border-bottom-right-radius
     • border-bottom-left-radius
     div {
       <!-- Radius is set for all 4 sides -->
       border-radius: 50%;
       <!-- top-left-and-bottom-right | top-right-and-bottom-left -->
       border-radius: 10px 5%;
       <!-- top-left | top-right-and-bottom-left | bottom-right -->
       border-radius: 2px 4px 2px;
       <!-- top-left | top-right | bottom-right | bottom-left -->
       border-radius: 1px 0 3px 4px;
     }

  • Border Short-hand

    We can also write it in combination as given below :-
    Width | Style | Color

    div {
      border: border-width border-style border-color ;
      border: 5px solid red ;
    }


  • Border Sides

    To control an Individual side of the box.

    • border-left-wight :5px;
    • border-right-color :red;
    • border-top-style :solid;
    • border-bottom :5px solid red;

• Padding :-



  div {



  • padding-top: 50px

  • padding-right: 50px

  • padding-bottom: 50px

  • padding-left: 50px

  }

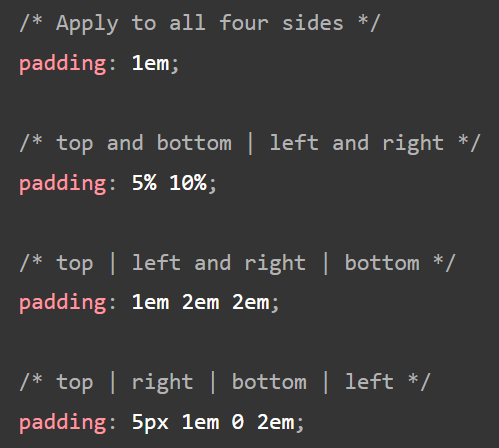

  Padding Short-hand :-

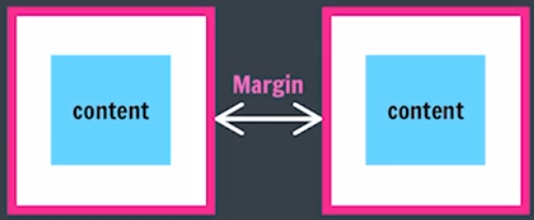

• Margin :- To set spacing on the outside of border.


  div {



  • margin-top: 50px

  • margin-right: 50px

  • margin-bottom: 50px

  • margin-left: 50px

  }

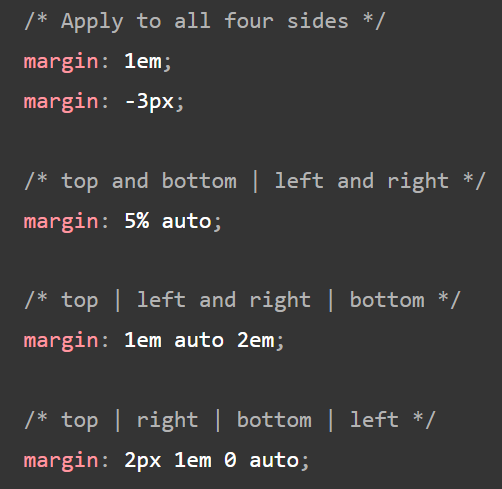

  Margin Short-hand :-


Note :-
We can give border, padding, margin their style in different dimensions by follwing methods :-

We can combine these by following method.

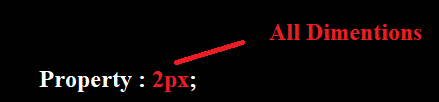

If only one value is given :-

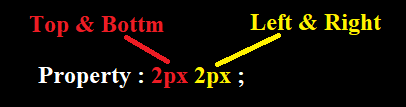

If two values are given :-

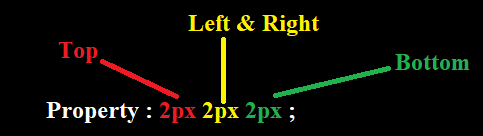

If three values are given :-

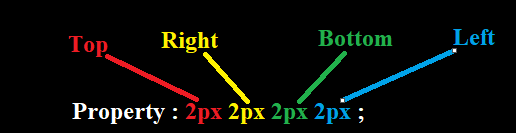

If four values are given :-
